zeeltronic Yamaha Superjet 700/760 Programable Ignition PDCIS-Y62T-R

PCDIS-Y62T programmable CDI for Yamaha SuperJet 700 / 760 GP3 / Stock Lite class Racing use

Ready to use

After testing since begin 2022 we are happy to come with the next tuning step for Yamaha SuperJet 700 / 760 on market.
You can chose for different fuel and also we can setup map individualy for You engine setbup.
it is a plug in tuning – CDI are setup ready to go. Work best with our GP3 Jetting Kit.

Extremely change power down low and in rough water acceleration even against MSD dramatically for faster lap times guarantee.

PDCIS-Y62T is single channel combined AC/DC-CDI with 2 switchable ignition maps, latching stop and automatic power down with extremely low current.
It can be programmed with handheld programmer, or PC.

PDCIS-Y62T was specially designed for Yamaha SuperJet 61X and 62T stators.
CDI is AC charged at starting and idle engine speeds.
Spark energy is greatly improved from mid, to high engine speeds, with additional DC charging.

Available also programming cable to setup Your own curve and mounting bracket if You dont have anymore from original CDI

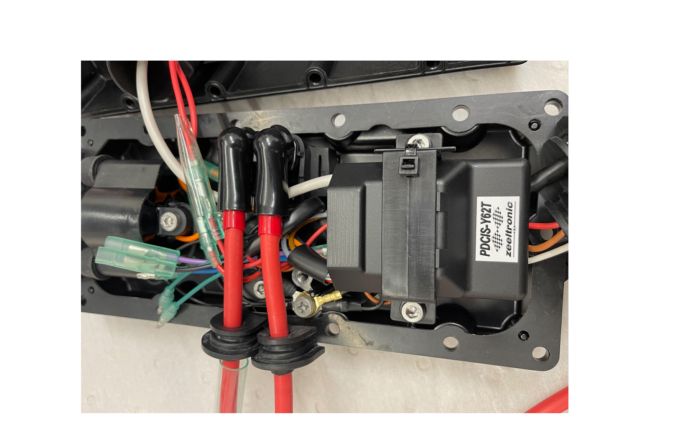

Fit all Yamaha 650/701/760 Engines in Waveblaster and Superjet all years

Technical data:
– minimum revs 200RPM
– maximum revs 20000RPM
– minimum supply voltage 9 Volts
– maximum supply voltage 17 Volts
– recommended power supply from 12 to 15Volts
– automatic power down current 0,5 mAmp
– max idle current draw 0,15 Amp
– max current draw 1,5 Amp
– output energy 75mJ

Circuit is protected against reverse supply voltage (wrong connection).

Features:
– fast power-up (also starts only with condenser)
– full power starting spark energy already at 9 Volts power supply
– one isolated input for magnetic pickup
– one ignition coil output
– external switch for changing ignition map while riding
– soft rev limit (three stage rev limit)
– individual rev limit for each ignition curve
– rev counter output (1 pulse per revolution, 12 Volt square wave)
– easy and fast programming with PC
– programming while machine running – you can immediately see effects
– each curve can be set in 4 to 12 curve points
– signal delay compensation
– latching stop
– automatic power down
– fast processing for high accuracy – delays from 1us

Zeeltronic software > Download

Wiring diagram Yamaha Superjet 650/61X, 701/62T > Download

Other parts:

Cable for Programming: PC-USB-HRS

Bracket for mount (OEM Yamaha bracket) Part Number: 90464-06M29
